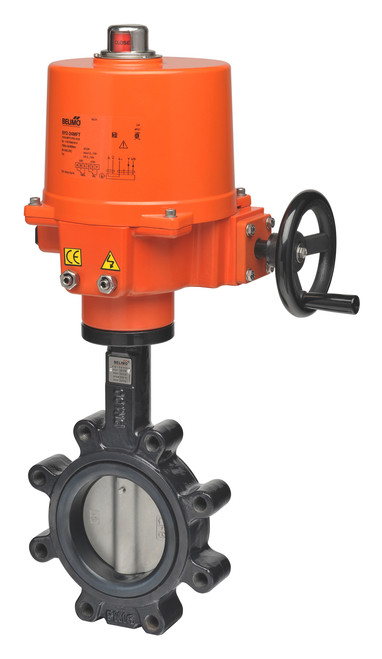

Belimo F7400HD+SY8-120MFT : 3-Way 16" Inch Butterfly Valve, ANSI Class Consistent with 125, Cv 16388 + Non Fail-Safe Industrial Valve Actuator, 120VAC, Programmable (2-10VDC Default) Control Signal, 2x SPDT, NEMA 4X, 2-Year Warranty
Belimo F7400HD resilient seated butterfly valve assembly with SY8-120MFT actuator provides dependable flow control for chilled water and hot water HVAC hydronic systems. The actuator supports modulating control and common building automation sequences. Use the specifications below to confirm pressure class, Cv, voltage, control signal, and enclosure rating before ordering.
Belimo F7400HD Valve Specifications
-
ANSI Class Consistent with 125 Pattern 3-way Cv 16388 Fluid Chilled or hot water, up to 60% glycol Body Pressure Rating ANSI Class Consistent with 125, 232 psi CWP Flow characteristic {Tools} Linear End Fitting Flange Valve Size 16" [400] Belimo SY8-120MFT Valve Actuator Specifications
-
Voltage AC/DC AC 120 V Power Consumption For Wire Sizing 336 VA Auxiliary Switches 2x SPDT Control Type MFT/Programmable Protection category IP66/67 Degree Of Protection NEMA NEMA 4X Enclosure Type UL Enclosure Type 4X
Datasheets
- Valve Pattern:
- 3-Way
- Valve Size:
- 16 Inch
- ANSI Class:
- Consistent with 125
- CV Rating:
- 16388
- Actuator Type:
- Non-Fail Safe
- Voltage:
- 120VAC
- Control Signal:
- Modulating/Programmable
