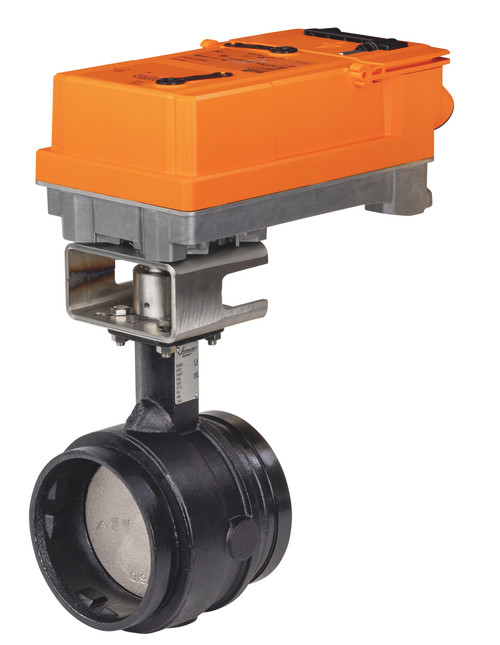

Belimo F750VIC+JRXUP-MFT-T : 3-Way 2" Butterfly Valve, ANSI Class Grooved AWWA, Cv 115 + Non-Fail Safe Actuator, 24 to 240 VAC / 24 to 125 VDC, Comm. via BACnet, Modbus, Belimo-MP-Bus or Mod. Control, 2x Aux. Switches, Terminal Strip, NEMA 4X
Belimo F750VIC butterfly valve assembly with JRXUP-MFT-T actuator provides dependable flow control for chilled water and hot water HVAC hydronic systems. Use the specifications below to confirm pressure class, voltage, control signal, and enclosure rating before ordering.
Belimo F750VIC Valve Specifications
-
ANSI Class Grooved AWWA Pattern 3-way Cv 115 Fluid Chilled or hot water, up to 60% glycol Body Pressure Rating ANSI Class Grooved AWWA, 300 psi Flow characteristic {Tools} Linear End Fitting Grooved Valve Size 2" [50] Belimo JRXUP-MFT-T Valve Actuator Specifications
-
Voltage AC/DC AC 24...240 V / DC 24...125 V Power Consumption (Running) 20 W Power Consumption (Holding) 7 W Power Consumption For Wire Sizing with 24 V 20 VA / with 240 V 55 VA Auxiliary Switches 2x SPDT Connection Control 22 ... 16 AWG, only copper wires (class 2 supply / SELV) Control Type BACnet MS/TP Modbus RTU MP-Bus DC 2...10 V DC 0.5...10 V 4...20 mA On/Off Floating/3-point Hybrid (communicative / analogue) Protection category IP66/67 Degree Of Protection NEMA NEMA 4X Enclosure Type UL Enclosure Type 4X
Datasheets
- Valve Pattern:
- 3-Way
- Valve Size:
- 2 Inch
- ANSI Class:
- Grooved AWWA
- CV Rating:
- 115
- Actuator Type:
- Non-Fail Safe
- Voltage:
- 24 to 240 VAC / 24 to 125 VDC
- Control Signal:
- Modulating/Programmable
