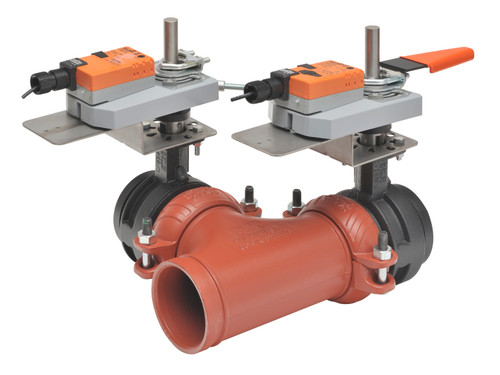

Belimo F765VIC+2*GMX24-MFT-X1 : 3-Way 2-1/2" Butterfly Valve, ANSI Class Grooved AWWA, Cv 260 + Dual Non-Fail Safe Valve Actuator, 24VAC/DC, Programmable (2-10VDC Default) Control, 5-Year Warranty
This Belimo butterfly valve assembly provides dependable flow control for chilled water and hot water HVAC hydronic systems. The actuator supports modulating control and common building automation sequences. Use the specifications below to confirm pressure class, voltage, control signal, and enclosure rating before ordering.
Belimo F765VIC Valve Specifications
-
ANSI Class Grooved AWWA Pattern 3-way Cv 260 Fluid Chilled or hot water, up to 60% glycol Body Pressure Rating ANSI Class Grooved AWWA, 300 psi Close-off Pressure 200 kPa Flow characteristic {Tools} Linear End Fitting Grooved Valve Size 2.5" [65] Belimo 2*GMX24-MFT-X1 Valve Actuator Specifications
-
Voltage AC/DC AC/DC 24 V Power Consumption (Running) 15 W Power Consumption (Holding) 4 W Power Consumption For Wire Sizing 12 VA Control Type MFT/Programmable Degree Of Protection NEMA NEMA 2 Enclosure Type UL Enclosure Type 2
Datasheets
- Valve Pattern:
- 3-Way
- Valve Size:
- 2-1/2 Inch
- ANSI Class:
- Grooved AWWA
- CV Rating:
- 260
- Actuator Type:
- Non-Fail Safe
- Voltage:
- 24VAC/DC
- Control Signal:
- Modulating/Programmable
