Belimo F765VIC+GMB24-3-X1 : 3-Way 2-1/2" Butterfly Valve, ANSI Class Grooved AWWA, Cv 260 + Non-Fail Safe Valve Actuator, 24VAC/DC, On/Off, Floating Point Control Signal, 5-Year Warranty

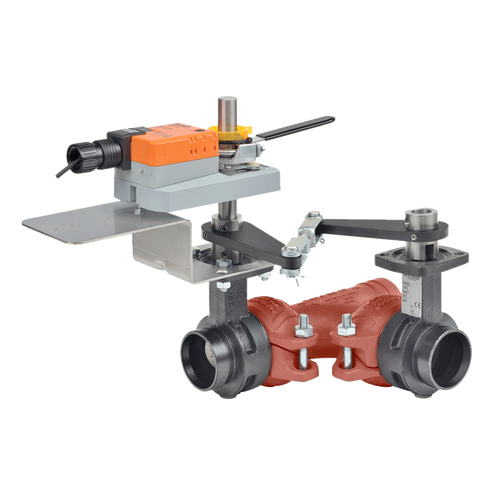

Belimo F765VIC butterfly valve assembly with GMB24-3-X1 actuator provides dependable flow control for chilled water and hot water HVAC hydronic systems. The actuator supports floating or 3-point control and common building automation sequences. Use the specifications below to confirm pressure class, voltage, control signal, and enclosure rating before ordering.
Belimo F765VIC Valve Specifications
-
ANSI Class Grooved AWWA Pattern 3-way Cv 260 Fluid Chilled or hot water, up to 60% glycol Body Pressure Rating ANSI Class Grooved AWWA, 300 psi Flow characteristic {Tools} Linear End Fitting Grooved Valve Size 2.5" [65] Belimo GMB24-3-X1 Valve Actuator Specifications
-
Voltage AC/DC AC/DC 24 V Power Consumption (Running) 4 W Power Consumption (Holding) 2 W Power Consumption For Wire Sizing 6 VA Control Type Floating/3-point Degree Of Protection NEMA NEMA 2 Enclosure Type UL Enclosure Type 2
Datasheets
- Valve Pattern:
- 3-Way
- Valve Size:
- 2-1/2 Inch
- ANSI Class:
- Grooved AWWA
- CV Rating:
- 260
- Actuator Type:
- Non-Fail Safe
- Voltage:
- 24VAC/DC
- Control Signal:
- On/Off/Floating Point
