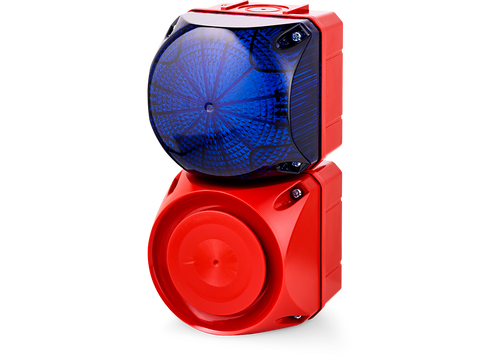

The EXT-AS-HS-BLU is a combination external horn and strobe alarm for Belimo 22G gas monitor systems — a 94 mm cubic multi-tone sounder paired with a high-power LED strobe beacon in a blue lens. It provides loud, highly-visible alarm signalling in large or high-ambient-noise spaces where the monitor's on-board horn alone is insufficient.
Extends audible/visual alarm for any Belimo 22G gas monitor: 22G02-5A, 22G02-5B, 22G02-5C, 22G14-5A, 22G14-5B, 22G14-5C, 22G0214-5A, 22G0214-5B, 22G0214-5C, 22G15-5A3, 22G15-5A5, 22G15-5B3, 22G15-5B5, 22G15-5B6, 22G15-5C6, 22G21-5C.
Large parking structures, warehouses, and mechanical rooms with high ambient noise or long sightlines, where a remote high-output horn/strobe ensures the alarm is heard and seen throughout the space.
Key Features
Combines a multi-tone sounder up to 108 dB(A) with a high-power LED strobe beacon for alarm coverage in large or high-noise spaces beyond the monitor's on-board horn.
Thirty-two selectable tones (3 externally switchable) and six strobe patterns let you distinguish gas alarms from other site alarms.
Sealed polycarbonate housing rated IP66 and UL Type 4/4X/13 for wet, dusty, and outdoor environments; IK09 impact resistance; LED life >50,000 h.
Technical Specifications
| Specification | Detail |
|---|---|
| Type | Combination Horn + LED Strobe Beacon |
| Lens Color | Blue |
| Strobe Intensity | 15 cd |
| Strobe Patterns | 6 selectable (externally switchable) |
| Light Source | High-power LEDs |
| Strobe/Flash Frequency | Double strobe 1.4 Hz; 6× strobe 1.0 Hz; multi-strobe |
| Horn Volume | Max 108 dB(A), potentiometer-adjustable |
| Tones | 32 selectable (3 externally switchable) |
| Housing | 94 mm square polycarbonate |
| Nominal Voltage | AC/DC 24 V |
| Connection | Screw/plug-in terminal, 2.5 mm² |
| Cable Entry | Rear grommet 5-10 mm; optional side gland |
| Service Life | LED >50,000 h |
| Operating Temperature | -22 to 140°F (-30 to 60°C) |
| Degree of Protection | IP66 / UL Type 4/4X/13 |
| Impact Resistance | IK09 |
| Weight | 3.7 lb (1.7 kg) |
| Manufacturer | Belimo |
| Manufacturer Part Number | EXT-AS-HS-BLU |
| Warranty | 5-year factory warranty |
Documentation
Frequently Asked Questions
What is the EXT-AS-HS-BLU?
A combination external horn and strobe alarm (blue lens, 15 cd strobe, up to 108 dB(A) horn) that extends the audible and visual alarm of a Belimo 22G gas monitor to cover large or noisy spaces.
Which monitors is it compatible with?
Any Belimo 22G gas monitor: 22G02-5A, 22G02-5B, 22G02-5C, 22G14-5A, 22G14-5B, 22G14-5C, 22G0214-5A, 22G0214-5B, 22G0214-5C, 22G15-5A3, 22G15-5A5, 22G15-5B3, 22G15-5B5, 22G15-5B6, 22G15-5C6, 22G21-5C.
How loud and how adjustable is it?
Up to 108 dB(A), infinitely adjustable via potentiometer, with 32 selectable tones (3 externally switchable) and 6 strobe patterns. IP66 / UL Type 4/4X/13 rated for indoor and outdoor use.
- Accessory Type:
- External Alarm
- Strobe Color:
- Blue
- Strobe Intensity:
- 15 cd
- Max Sound Level:
- 108 dB(A)
- Rating:
- NEMA 4/4X/13 / IP66
- Compatible With:
- Belimo 22G Gas Monitors
