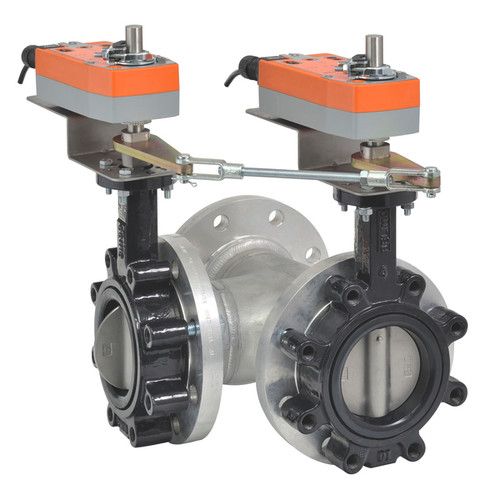

Belimo F680HD+2*AFX24-MFT-S-X1 : 2-Way 3" Inch Butterfly Valve, Cv 302, Close-off Pressure 200 psi + 2x Spring Return Actuator, 24VAC/DC, Prog. (2-10VDC) Control Signal, (2) SPDT 3A @250V Aux Switch, 5-Year Warranty

Belimo

MSRP: $2,869.00
$1,291.05
(You save $1,577.95 )
(No reviews yet) Write a Review
SKU:
F680HD+2*AFX24-MFT-S-X1
Condition:
New
Availability:
Ships in 2 Days
Adding to cart… The item has been added

Belimo F680HD+2*AFX24-MFT-S-X1 : 2-Way 3" Inch Butterfly Valve, Cv 302, Close-off Pressure 200 psi + 2x Spring Return Actuator, 24VAC/DC, Prog. (2-10VDC) Control Signal, (2) SPDT 3A @250V Aux Switch, 5-Year Warranty

Valve Specifications

ANSI Class Consistent with 125
Pattern 2-way
Cv 302
Fluid Chilled or hot water, up to 60% glycol
Body Pressure Rating ANSI Class Consistent with 125, 232 psi CWP
Flow characteristic {Tools} Modified equal percentage
End Fitting Flange
Valve Size 3" [80]



Actuator Specifications

Voltage AC/DC AC/DC 24 V
Power Consumption (Running) 7.5 W
Power Consumption (Holding) 3 W
Power Consumption For Wire Sizing 10 VA
Auxiliary Switches 2 x SPDT
Torque 180 in-lb [20 Nm]
Control Type MFT/Programmable
Protection category IP42
Degree Of Protection NEMA NEMA 2
Enclosure Type UL Enclosure Type 2
Ambient Temeprature -22...122°F [-30...50°C]



Datasheets

pdf logo Belimo F680HD+2*AFX24-MFT-S-X1 Technical Data Sheet
pdf logo Instruction Manual - Flanged Butterfly Valves
pdf logo Belimo Butterfly Valve Master Format
Valve Pattern:
2-Way
Valve Size:
3 Inch
CV Rating:
302
Actuator Type:
Fail-Safe
Voltage:
24VAC/DC
Control Signal:
MFT Programmable
Auxillary Switch:
(2) SPDT 3A @250V
NEMA 4X:
No
