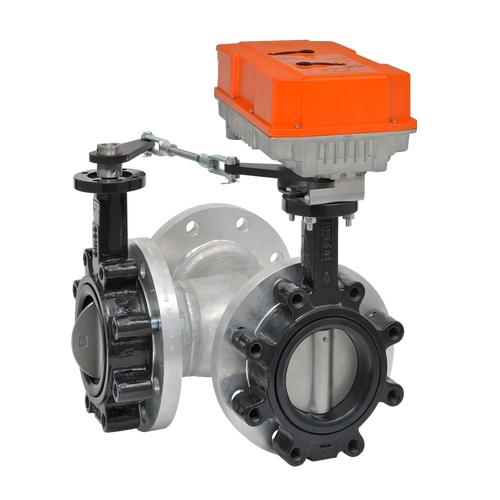

Belimo F7250L+PKRXUP-MFT-T-250 : 3-Way 10" Inch Butterfly Valve, Cv 5340, Close-off Pressure 200 psid + Electronically Fail-Safe Actuator, 24 to 240 VAC / 24 to 125 VDC, Programmable (2-10VDC Default) Control, Terminal Strip, NEMA 4X, 5-Year Warranty

Belimo

MSRP: $17,379.00
$7,820.55
(You save $9,558.45 )
(No reviews yet) Write a Review
SKU:
F7250L+PKRXUP-MFT-T-250
Condition:
New
Availability:
Ships in 2 Days
Adding to cart… The item has been added

Belimo F7250L+PKRXUP-MFT-T-250 : 3-Way 10" Inch Butterfly Valve, Cv 5340, Close-off Pressure 200 psid + Electronically Fail-Safe Actuator, 24 to 240 VAC / 24 to 125 VDC, Programmable (2-10VDC Default) Control, Terminal Strip, NEMA 4X, 5-Year Warranty

Valve Specifications

ANSI Class Consistent with 125
Pattern 3-way
Cv 5340
Fluid Chilled or hot water, up to 60% glycol
Body Pressure Rating ANSI Class Consistent with 125, 232 psi CWP
Flow characteristic {Tools} Modified equal percentage
End Fitting Flange
Valve Size 10" [250]



Actuator Specifications

Voltage AC/DC AC 24...240 V / DC 24...125 V
Power Consumption (Running) 52 W
Power Consumption (Holding) 9 W
Power Consumption For Wire Sizing
with 24 V 54 VA / with 240 V 68 VA
Auxiliary Switches
2x SPDT
Control Type MFT/Programmable
Protection category IP66/67
Degree Of Protection NEMA NEMA 4X
Enclosure Type UL Enclosure Type 4X



Datasheets

pdf logo Belimo F7250L+PKRXUP-MFT-T-250 Technical Data Sheet
pdf logo Instruction Manual - Flanged Butterfly Valves
pdf logo Quick Mount Visual Instruction Manual PR and PKR Actuators with Butterfly Valves
pdf logo Belimo Globe Valve Master Format
Valve Pattern:
3-Way
Valve Size:
10 Inch
CV Rating:
5340
Actuator Type:
Fail-Safe
Voltage:
24 to 240 VAC / 24 to 125 VDC
Control Signal:
MFT Programmable
Auxillary Switch:
None
NEMA 4X:
No
