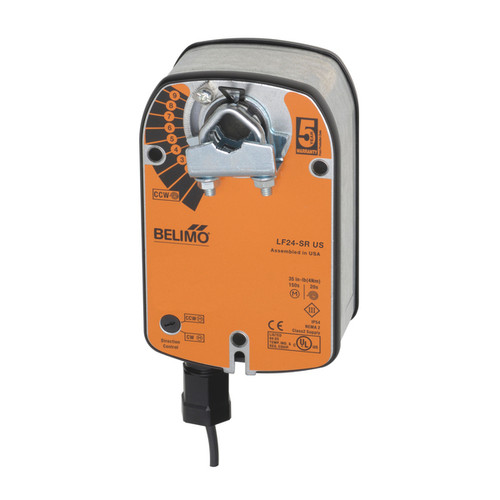

Belimo LF24-SR-E US : Fail-Safe Damper Actuator, 35 in-lb Torque, 24VAC/DC, Modulating 2-10VDC, 3-position or On/Off Control Signal, Built-in Minimum Position Adjustment, 5-Year Warranty

Belimo

MSRP: $736.00
$331.20
(You save $404.80 )
(No reviews yet) Write a Review
SKU:
LF24-SR-E US
Condition:
New
Availability:
Ships in 1-2 Days
Adding to cart… The item has been added

Belimo LF24-SR-E US : Fail-Safe Damper Actuator, 35 in-lb Torque, 24VAC/DC, Modulating 2-10VDC, 3-position or On/Off Control Signal, Built-in Minimum Position Adjustment, 5-Year Warranty

Specifications

Voltage AC/DC AC/DC 24 V
Power Consumption (Running) 2.5 W
Power Consumption (Holding) 1 W
Power Consumption For Wire Sizing 5 VA
Torque 35 in-lb [4 Nm]
Control Type DC 2...10 V
Direction Of Motion Motor selectable with switch 0/1
Direction of Rotation (Fail-Safe) Reversible with cw/ccw mounting
Angle of Rotation 95
Running Time (Motor) 150 s / 90°
Running Time (Fail-safe) <25 s
Protection category IP42
Degree Of Protection NEMA NEMA 2
Enclosure Type UL Enclosure Type 2
Ambient Temperature -22...122°F [-30...50°C]



Datasheets

pdf logo Belimo LF24-SR-E Technical Data sheet
pdf logo Belimo LF Series Installation Instructions
pdf logo Belimo Mounting Methods Guide
pdf logo Belimo Master Format
Actuator Type:
Fail-Safe
Torque:
35 in-lb
Voltage:
24VAC/DC
Control Signal:
2-10VDC
Auxillary Switch:
None
NEMA 4X Enclosure:
No
