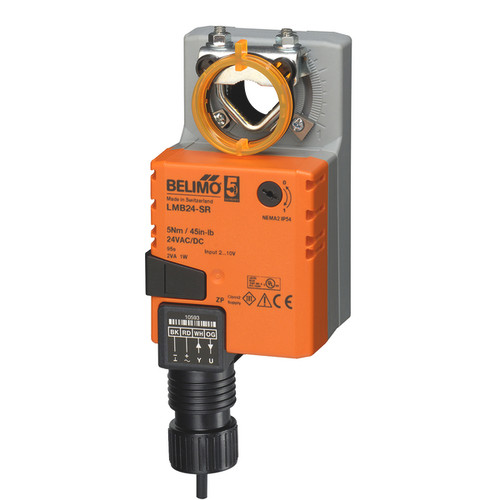

The Belimo LMB24-SR-T is a compact non-spring-return damper actuator delivering 45 in-lb [5 Nm] of torque with modulating 2-10 VDC control on AC/DC 24 V power. It direct-couples to round or square damper shafts from 1/4 in. to 5/8 in. (up to 3/4 in. with an accessory clamp) and holds its last position on loss of power (it is non-fail-safe, with no spring return), making it a proven member of the LMB platform for small to mid-size commercial HVAC dampers. Field wiring is via a screw-terminal strip (26-14 AWG). This listing is a factory multipack of 36 units (36 pcs.) of the LMB24-SR-T — ideal for large jobs and stocking.
Specifications sourced from the official Belimo LMB24-SR-T technical data sheet (rev 2025-12-23).
Overview
Belimo LM-Series actuators are compact non-spring-return drives for small and mid-size commercial HVAC dampers — they position the damper under power and hold the last commanded position when power is removed (there is no spring-return fail-safe). The LMB24-SR-T produces 45 in-lb [5 Nm] and mounts directly to round or square damper shafts from 1/4 in. to 5/8 in. (up to 3/4 in. with an accessory clamp). A 2-10 VDC (or 4-20 mA with the ZG-R01 resistor) signal modulates the damper, with 2-10 VDC position feedback. This product is sold as a factory multipack of 36 units (36 pcs.).
Best for
- Modulating damper control without fail-safe return
- Small to mid-size damper and louver positioning (45 in-lb)
- Direct shaft mount, 1/4-5/8 in. (to 3/4 in. with accessory clamp)
- Installations that prefer screw-terminal wiring
Key Features
Non-Spring-Return Design
Holds the last commanded position when power is removed (non-fail-safe). Lower cost and power draw than a spring-return actuator where fail-safe operation is not required.
45 in-lb Torque
Sized for small and mid-size dampers; direct-couples to round or square damper shafts from 1/4 in. to 5/8 in. (up to 3/4 in. with an accessory clamp).
Modulating 2-10 VDC
Accepts a 2-10 VDC (or 4-20 mA with ZG-R01) signal with 2-10 VDC position feedback.
Screw-Terminal Wiring
Field wiring lands on a screw-terminal strip (26-14 AWG) instead of a pre-wired cable.
cULus Listed & Quiet
Double-insulated (Class 2), cULus listed, ISO 9001 built, UL 2043 plenum-rated for long, maintenance-free service.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Belimo |
| Part Number | LMB24-SR-T.1 |
| Actuator Type | Non-Spring-Return (Non Fail-Safe) Damper Actuator |
| Nominal Voltage | AC/DC 24 V |
| Nominal Frequency | 50/60 Hz |
| Power Consumption (Running) | 1.5 W |
| Transformer Sizing | 3 VA |
| Torque | 45 in-lb [5 Nm] |
| Control Signal | Modulating |
| Operating Range (Y) | 2-10 VDC (4-20 mA with ZG-R01 resistor) |
| Position Feedback (U) | 2-10 VDC (max. 0.5 mA) |
| Shaft Range | 1/4 in. to 5/8 in. (to 3/4 in. with accessory clamp) |
| Angle of Rotation | Max. 95° (adjustable mechanical stop) |
| Running Time (Motor) | 95 s / 90° Running time motor note constant, independent of load Sound power level, motor 35 dB |
| Behavior on Power Loss | Holds last position (non-spring-return) |
| Manual Override | External push button (self-locking gear) |
| Direction of Motion | Selectable with 0/1 switch |
| Electrical Connection | Screw terminal strip (26-14 AWG) |
| Overload Protection | Electronic, full 0-95° rotation |
| Electrical Protection | Double insulated (Class 2) |
| Enclosure Rating | NEMA 1 / UL Type 1 |
| Ambient Temperature | -22 to 122°F [-30 to 50°C] |
| Agency Listing | cULus (UL60730-1A / -2-14, CAN/CSA) |
| Quality Standard | ISO 9001 |
| Plenum Rated | UL 2043 (suitable for air plenums) |
| Weight | 1.0 lb [0.48 kg] |
| Warranty | 5 Years |
Documentation
Related Products
Accessories & Mounting
Common Belimo accessories for mounting, linkage, signaling and powering the LMB24-SR-T, drawn from the actuator datasheet. All are stocked by ZOT Supply as an authorized Belimo distributor.
Mounting & Linkage
Electrical Add-Ons
Enclosures & Weather Shields
Frequently Asked Questions
What is the Belimo LMB24-SR-T?
The Belimo LMB24-SR-T is a compact non-spring-return (non-fail-safe) damper actuator for commercial HVAC. It produces 45 in-lb [5 Nm] of torque, uses modulating 2-10 VDC control on AC/DC 24 V power, and holds its last position on loss of power. Its housing is rated NEMA 1.
How many actuators are in this Belimo LMB24-SR-T pack?
This listing is a factory multipack containing 36 units (36 pcs.) of the Belimo LMB24-SR-T actuator. Pricing is for the full 36-unit pack — ideal for large projects, rough-ins and stocking inventory.
Is the LMB24-SR-T a spring-return (fail-safe) actuator?
No. The LMB24-SR-T is non-spring-return: when power is lost it holds its last commanded position rather than driving to a fail-safe position. If you need fail-safe operation, choose a spring-return Belimo LF-Series actuator instead.
What happens to the LMB24-SR-T when power is lost?
It stays put. A non-spring-return actuator maintains its last position when power is removed and resumes from there when power returns.
What shaft sizes does the LMB24-SR-T fit?
It direct-couples to round or square damper shafts from 1/4 in. to 5/8 in. (up to 3/4 in. with an accessory clamp) using its universal clamp.
What control signal does the LMB24-SR-T use?
It uses modulating 2-10 VDC control. The 2-10 VDC input also accepts 4-20 mA with the ZG-R01 resistor and provides 2-10 VDC feedback.
What is the running time of the LMB24-SR-T?
Motor running time is about 95 s / 90° Running time motor note constant, independent of load Sound power level, motor 35 dB for 90 degrees of travel.
What does the -T in LMB24-SR-T mean?
The -T denotes a screw-terminal strip for field wiring (26-14 AWG) in place of the pre-wired cable and conduit connector. The actuator is otherwise identical.
Is the Belimo LMB24-SR-T available from an authorized Belimo distributor?
Yes. ZOT Supply is an authorized Belimo distributor and carries the LMB24-SR-T. Every unit ships factory new with Belimo's full 5-year warranty and application support.
