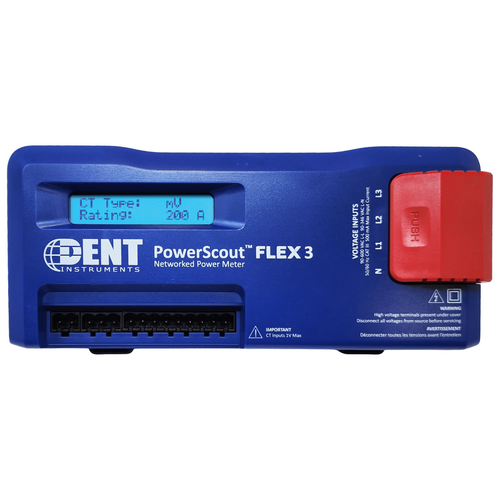

PS3FX-C-D-N — PowerScout FLEX 3 Multi-Circuit Power Submeter
The Dent Instruments PS3FX-C-D-N is part of the PowerScout™ FLEX 3 family, DENT's next-generation three-channel multi-circuit submeter that replaces the PowerScout™ HD. The PS3FX-C-D-N measures voltage, current, power, energy, and a wide range of electrical parameters on any combination of single- and three-phase loads, making it well suited to tenant submetering, bi-directional (import/export) metering, and real-time energy monitoring across commercial and industrial facilities.
The PS3FX-C-D-N delivers revenue-grade performance with continuous 7.2 kHz sampling (no blind cycles), a 1-second parameter update rate, and ANSI C12.1-2024 Class 0.2 accuracy when paired with an appropriate CT. It supports both BACnet and Modbus, and every FLEX 3 model — including this PS3FX-C-D-N — provides RS-485 serial and 10/100 Ethernet as standard. Setup is handled through FLEXPoint™ PC software or the browser-based FLEXPoint™ GO web server, and DENT's patented PhaseChek™ circuitry confirms correct CT orientation during commissioning.
Housed in a self-contained wall-mounted ABS enclosure (UL 94-V0 ABS), the PS3FX-C-D-N is delivered in the Wall Mount Enclosure form factor. Like all PowerScout meters, the PS3FX-C-D-N is designed to operate as an endpoint that reports to a building management system, RTU, data acquisition device, or DENTCloud™ host rather than as a standalone recorder.
Best for
- Tenant and accountability submetering in commercial, retail, and mixed-use buildings
- Bi-directional metering for solar, wind, and other renewable or storage interconnections
- Monitoring building mains, HVAC, pumps, motors, and equipment loads
- Multi-circuit measurement using Virtual Meters to group the PS3FX-C-D-N's three channels by load
- Hospitals, data centers, and government projects requiring Made in USA / BAA / TAA equipment
Key Features
FLEXPoint™ + FLEXPoint™ GO
Configure the PS3FX-C-D-N from a rebuilt PC application or directly from any web browser with FLEXPoint GO — no software install required for on-site changes, validation, and field troubleshooting.
Flexible Virtual Meters
Assign any of the three CT channels to any load in any combination — single-phase, split-phase, or three-phase groupings — and meter multiple loads from a single PS3FX-C-D-N with consistent load labels across software, register exports, and cloud systems.
Dual-Protocol, Serial + Ethernet
The PS3FX-C-D-N speaks both BACnet and Modbus and includes RS-485 serial and 10/100 Ethernet on every model, with an IEEE-754 floating-point register map that eliminates scaling factors and flattens Virtual Meters to a single address.
PhaseChek™ + Revenue-Grade Accuracy
Built-in PhaseChek verification confirms correct CT orientation and phase matching to reduce installation errors, while the PS3FX-C-D-N meets ANSI C12.1-2024 Class 0.2 revenue-grade accuracy (dependent on CT selection).
Universal CT Compatibility
Mix and match a full range of 333.3 mV CTs — Solid Core, Split Core, or RōCoil™ (Rogowski) — including revenue-grade options, measuring up to 4000+ A depending on the CT used with the PS3FX-C-D-N.
Made in USA, BAA & TAA Compliant
Per the DENT data sheet, the PowerScout FLEX 3 is Made in USA and marked Buy American Act (BAA) and TAA compliant, supporting procurement requirements common to government, healthcare, and institutional projects.
Technical Specifications
| Specification | PS3FX-C-D-N |
|---|---|
| Model / Part Number | PS3FX-C-D-N |
| Series | PowerScout FLEX 3 (3-channel, multi-circuit) |
| Service Type | Single Phase, Three Phase-Four Wire (WYE), Three Phase-Three Wire (Delta) |
| Power | From L1 Phase to L2 Phase. 90-600 VAC RMS, CAT III, 50/60 Hz, 500 mA AC Max |
| AC Protection | 0.5 A internal fuse protection; 200 kA interrupt |
| Voltage Channels | 80-346 VAC Line-to-Neutral, 600 V Line-to-Line, CAT III |
| Current Channels | 3 channels, 0.525 VAC max, 333.3 mV CTs, 0-4000+ A depending on CT |
| Maximum Current Input | 150% of CT rating (mV CTs) to maintain accuracy; up to 4000 A with RōCoil CTs |
| Measurement Type | True RMS using high-speed digital signal processing (DSP) |
| Accuracy | 0.2% — ANSI C12.1-2024 Class 0.2; NIST traceable calibration |
| Resolution | 32-bit floating point (IEEE-754) |
| Line Frequency | 50/60 Hz (45-65 Hz measurable range); measured L1-N |
| Sampling | Continuous 7.2 kHz (no blind cycles) |
| Parameter Update Rate | 1.0 second |
| Measurements | Volts, Amps, kW, kVAR, kVA, aPF, dPF, kW demand, kVA demand, Import/Export/Net kWh, kVAh and kVARh, THD, Theta, Frequency — per phase and per Virtual Meter |
| Display | 2 x 16-character LCD with tri-color backlight |
| Communications Hardware | RS-485 Serial and 10/100 Ethernet |
| Supported Protocols | Modbus RTU, BACnet MS/TP, Modbus TCP or BACnet IP |
| Communication Rate | Modbus: 9600-115200 baud; BACnet: 9600-76800 baud |
| Max Communication Length | 1200 m at 100K bits/second or less |
| Alarm Output | Undervoltage (open collector, 30 VDC max) |
| USB | USB 2.0 (USB-C) |
| Web Page Security | 2 levels of PIN protection (Read/Write or Read-Only) |
| Mounting | Self-contained wall mount enclosure with three 0.5 in (12.7 mm) conduit connections |
| Enclosure | ABS plastic, 94-V0 flammability rating |
| Enclosure Dimensions | 25.70 x 14.00 x 5.37 cm (10.12 x 5.50 x 2.12 in) |
| Weight (approximate) | 635 g (22 oz), excluding CTs |
| Wire Connections | 12-28 AWG, 600 VAC; voltage connection must be #14 AWG or larger and 600 VAC rated |
| Operating Temperature | -20 to 60 °C (-4 to 140 °F) |
| Humidity | 5% to 95% non-condensing |
| Certifications | UL Listed (UL 61010-1 3rd Ed. & IEC 61010-2-030); CE (LVD EN61010-1, EMC EN61326-1); RoHS 3 (IEC 63000:2018); Made in USA; BAA and TAA compliant |
| Configuration Software | FLEXPoint™ (Windows 10 / 11) and FLEXPoint™ GO web server |
Documentation
- PDF PowerScout FLEX 3 Data Sheet
- PDF Installation, Wiring & Operator's Guide
- PDF FLEXPoint Software & Integration Guide
- PDF Commissioning Checklist
- PDF Quick Start Guide
Frequently Asked Questions
What protocols does the PS3FX-C-D-N support?
The PS3FX-C-D-N supports Modbus RTU, BACnet MS/TP, Modbus TCP or BACnet IP, so it can integrate with most BACnet or Modbus building management and energy systems.
Does the PS3FX-C-D-N include both serial and Ethernet?
Yes. Every PowerScout FLEX 3 model, including the PS3FX-C-D-N, ships with RS-485 serial and 10/100 Ethernet as standard.
Which current transformers work with the PS3FX-C-D-N?
The PS3FX-C-D-N accepts 333.3 mV DENT CTs — Solid Core, Split Core, and RōCoil™ (Rogowski) — including revenue-grade options, and measures up to 4000+ A depending on the CT selected.
What is the form factor of the PS3FX-C-D-N?
The PS3FX-C-D-N is supplied in the Wall Mount Enclosure (self-contained wall-mounted ABS enclosure), measuring 25.70 x 14.00 x 5.37 cm (10.12 x 5.50 x 2.12 in).
Is the PS3FX-C-D-N revenue grade?
The PS3FX-C-D-N meets ANSI C12.1-2024 Class 0.2 revenue-grade accuracy, dependent on the CT selected, and ships with a NIST-traceable calibration.
How does the PS3FX-C-D-N get data to a host or BMS?
The PS3FX-C-D-N operates as an endpoint, reporting over Ethernet (BACnet/IP or Modbus TCP) or RS-485 (Modbus RTU or BACnet MS/TP) to a building management system, RTU, data acquisition device, or DENTCloud™ host.
Is the PS3FX-C-D-N Made in USA?
Yes. Per the DENT data sheet the PowerScout FLEX 3, including the PS3FX-C-D-N, is Made in USA and is marked BAA and TAA compliant.
Warranty
DENT Instruments, Inc. warrants that PowerScout Series instruments and accessories are free from substantial defects in material and workmanship under normal use, given proper installation and maintenance, for 5 years (60 months) from the invoice date.
More broadly, DENT Instruments promises that any product it sells is free from material defects in design, materials, or manufacturing for the period shown on that product's current data sheet, beginning from the date of manufacture. This warranty does not extend to ordinary wear and tear, or to normally replaceable components such as batteries and humidity sensor elements.
Coverage & Remedy
During the warranty period, DENT Instruments may, at its sole option, repair, replace, service, or credit any product found to be defective and returned freight prepaid by the buyer, at no charge to the buyer for the warranty repair or replacement. Refurbished material may be used. DENT covers ground shipping for advance warranty replacements; if the customer requests expedited shipping, the customer pays the difference.
The warranty remains in effect provided the product: (1) was installed, operated, and maintained properly; (2) has not been abused or misused; (3) has not been repaired, altered, or modified outside of DENT Instruments' authorized facilities; and (4) was not sold subject to other warranty terms specified at the time of sale.
Limitation & Disclaimer
This warranty replaces all other warranties, expressed or implied, including any warranties of merchantability and fitness for a particular purpose, and is the sole and exclusive remedy. In no event will DENT Instruments be liable for any special, incidental, or consequential damages or commercial losses, even if advised of the possibility. Correction of defects by repair, replacement, service, or credit at the seller's option constitutes fulfillment of all warranty obligations. All transactions are governed by the laws of the State of Oregon, U.S.A.
Warranty Service
To request warranty service, contact DENT Instruments Technical Support at 541.388.4774 or 800.388.0770, or email support@dentinstruments.com. A Returned Material Authorization (RMA) number is required before returning any product.
