Prolon PL-PN2-NC-HMI-M2-RTU : Pre-Wired Prolon Master Panel with Touchscreen Display and M2000 Zoning System Rooftop Controller, Terminal for all Connections (24V Power Supply, Inputs, Outputs, Communication), NEMA 1 Enclosure, UL508

Prolon PL-PN2-NC-HMI-M2-RTU : Pre-Wired Prolon Master Panel with Touchscreen Display and M2000 Zoning System Rooftop Controller, Terminal for all Connections (24V Power Supply, Inputs, Outputs, Communication), NEMA 1 Enclosure, UL508

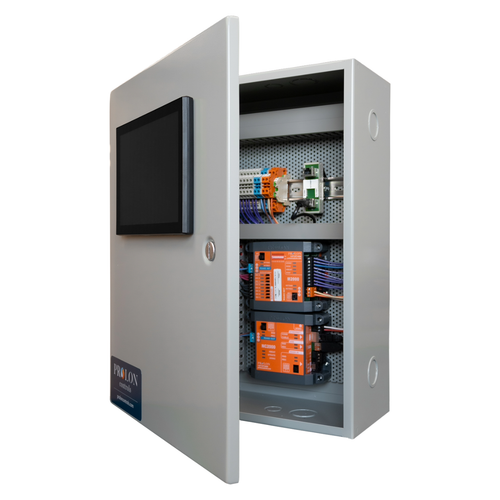

The Prolon NC2000 Panel is a complete communications and interface package used to access and configure any Prolon control system, either locally or remotely. A ten-inch touchscreen display acts as a local interface to the system and is mounted into a steel enclosure which houses the pre-wired Prolon NC2000 Network Controller. The NC2000 is used to connect a Prolon system to the Internet, to send schedules to the controllers and distribute outside air temperature readings. It can also be used to record trend logs and to send email-based alerts upon user-configurable conditions.

Features

• Built-in 10-inch touchscreen display for local setup and monitoring
• Prolon Focus visualization and configuration software comes pre-installed
• Implements a password lockout system for standard And advanced user access
• Pre-wired panel equipped with fuses and clearly marked terminal blocks
• Allows for remote configuration of your Prolon system over the Internet
• Internal clock with up to 16 configurable weekly schedules and annual calendars
• Automatic adjustment for daylight savings and time synchronization over the Internet
• Keeps precise time without electricity for up to 10 days
• Onboard LEDs allows for quick diagnostics of power, communication and operation
• Shares outside air temperature and occupancy data between devices
• Sends email alerts based on user-configurable conditions
• Records up to 100 trend logs at the same time, saved onto a standard SD card

Technical Specifications

Datasheets

Pre-Wired Network Controller Panel
