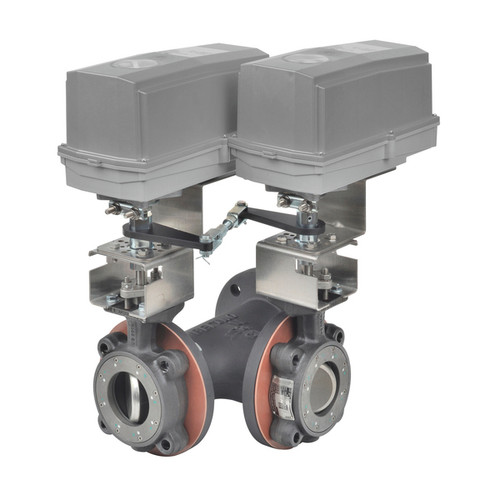

Belimo F6100-150SHP+2*GMX24-MFT-X1 : 2-Way 4" Inch Butterfly Valve, ANSI Class 150, Cv 451 + Dual Non-Fail Safe Valve Actuator, 24VAC/DC, Programmable (2-10VDC Default) Control, 5-Year Warranty
This Belimo butterfly valve assembly provides dependable flow control for chilled water and hot water HVAC hydronic systems. The actuator supports modulating control and common building automation sequences. Use the specifications below to confirm pressure class, Cv, voltage, control signal, and enclosure rating before ordering.
Belimo F6100-150SHP Valve Specifications
-
ANSI Class 150 Pattern 2-way Cv 451 Fluid Chilled or hot water, up to 60% glycol, steam Body Pressure Rating ANSI Class 150 End Fitting Flange Valve Size 4" [100] Belimo 2*GMX24-MFT-X1 Valve Actuator Specifications
-
Voltage AC/DC AC/DC 24 V Power Consumption (Running) 15 W Power Consumption (Holding) 4 W Power Consumption For Wire Sizing 12 VA Control Type MFT/Programmable Degree Of Protection NEMA NEMA 2 Enclosure Type UL Enclosure Type 2
Datasheets
- Valve Pattern:
- 2-Way
- Valve Size:
- 4 Inch
- ANSI Class:
- 150
- CV Rating:
- 451
- Actuator Type:
- Non-Fail Safe
- Voltage:
- 24VAC/DC
- Control Signal:
- Modulating/Programmable
