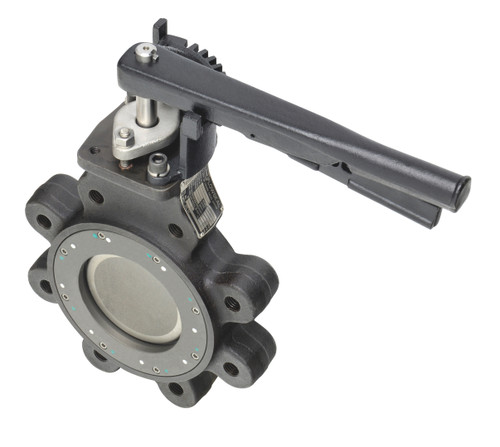

Belimo F6125-150SHP+HND07 : 2-Way 5" Inch Butterfly Valve, ANSI Class 150, Cv 714 + Hand Wheel
Belimo F6125-150SHP high performance butterfly valve assembly with HND07 actuator provides dependable flow control for chilled water and hot water HVAC hydronic systems. Use the specifications below to confirm pressure class, Cv, voltage, control signal, and enclosure rating before ordering.
Specifications
-
ANSI Class 150 Pattern 2-way Cv 714 Fluid Chilled or hot water, up to 60% glycol, steam Body Pressure Rating ANSI Class 150 End Fitting Flange Valve Size 5" [125]
Datasheets
 |
Technical Data Sheet - bfv-150shp-rev2 |
|
Installation instructions - Butterfly Valve |
|
Butterfly Accessories |
|
SHP Series Technical Documentation |
- Valve Pattern:
- 2-Way
- Valve Size:
- 5 Inch
- ANSI Class:
- 150
- CV Rating:
- 714
- Actuator Type:
- Manual
