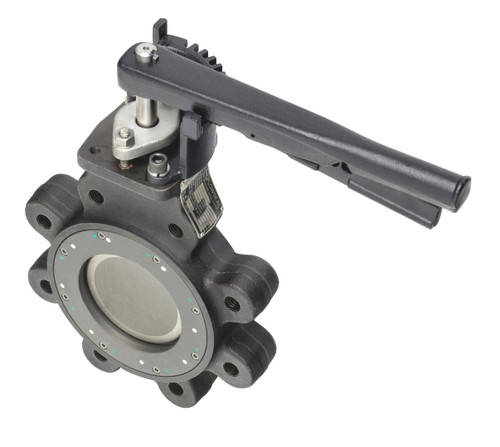

Belimo F6125-300SHP+HND07 : 2-Way 5" Inch Butterfly Valve, ANSI Class 300, Cv 714+ Hand Gear
Belimo F6125-300SHP high performance butterfly valve assembly with HND07 actuator provides dependable flow control for chilled water and hot water HVAC hydronic systems. Use the specifications below to confirm pressure class, Cv, voltage, control signal, and enclosure rating before ordering.
Specifications
-
ANSI Class 300 Pattern 2-way Cv 714 Fluid Chilled or hot water, up to 60% glycol, steam Body Pressure Rating ANSI Class 300 End Fitting Flange Valve Size 5" [125]
Datasheets
 |
Technical Data Sheet - bfv-300shp-rev2 |
|
Installation instructions - Butterfly Valve |
|
Butterfly Accessories |
|
SHP Series Technical Documentation |
- Valve Pattern:
- 2-Way
- Valve Size:
- 5 Inch
- ANSI Class:
- 300
- CV Rating:
- 714
- Actuator Type:
- Manual
