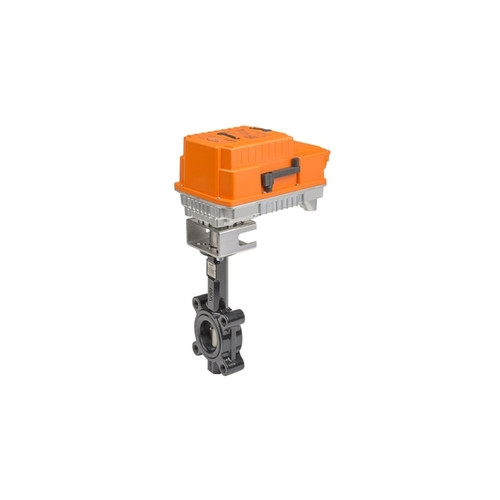

Belimo F6150L+PKRXUP-MFT-T : 2-Way 6" Inch Butterfly Valve, ANSI Class 125, Cv 2055 + Electronic Fail-Safe Actuator, 24 to 240 VAC / 24 to 125 VDC, Programmable (2-10VDC Default) Control, 2x Aux. Switches, Terminal Strip, NEMA 4X, 5-Year Warranty
Belimo F6150L butterfly valve assembly with PKRXUP-MFT-T actuator provides dependable flow control for chilled water and hot water HVAC hydronic systems. The electronic fail-safe actuator supports modulating control and common building automation sequences. Use the specifications below to confirm pressure class, Cv, voltage, control signal, and enclosure rating before ordering.
Specifications
-
Voltage AC/DC AC 24...240 V / DC 24...125 V Power Consumption (Running) 52 W Power Consumption (Holding) 9 W Power Consumption For Wire Sizing with 24 V 54 VA / with 240 V 68 VA Auxiliary Switches 2x SPDT Control Type BACnet MS/TP Modbus RTU MP-Bus DC 2...10 V DC 0.5...10 V Direction Of Motion Motor reversible with app Direction of Rotation (Fail-Safe) Reversible with app Manual Override 7 mm hex crank, supplied Angle of Rotation 90¡ Running Time (Motor) 35 s / 90¡ Running Time range (Motor) 30...120 s Running Time (Fail-safe) <30 s Degree Of Protection NEMA NEMA 4X Enclosure Type UL Enclosure Type 4X
Datasheets
 |
Technical data sheet F6150L+PKRXUP-MFT-T |
|
Electronic Valve Application Guide |
|
HD and L Series Technical Documentation |
- Valve Pattern:
- 2-Way
- Valve Size:
- 6 Inch
- ANSI Class:
- Consistent with 125
- CV Rating:
- 2055
- Actuator Type:
- Electronic Fail-Safe
- Voltage:
- 24 to 240 VAC / 24 to 125 VDC
- Control Signal:
- Modulating/Programmable
