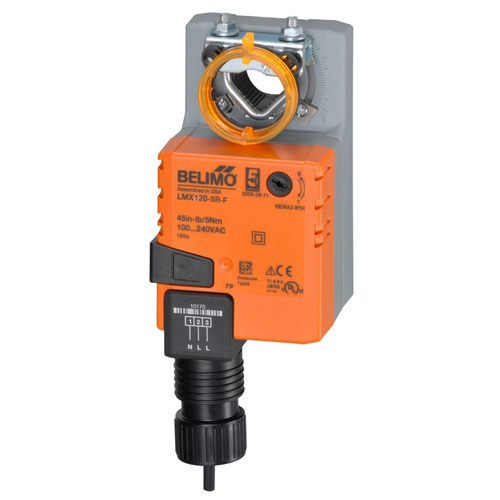

Belimo LMX120-SR : Non Fail-Safe Damper Actuator, 35 in-lb Torque, 120VAC, Modulating 2-10VDC Control Signal, 5-Year Warranty (Configurable)
Specifications
| Voltage AC/DC | AC 100...240 V |
| Power Consumption (Running) | 2.5 W |
| Power Consumption (Holding) | 1 W |
| Power Consumption For Wire Sizing | 4.5 VA |
| Torque | 45 in-lb [5 Nm] |
| Control Type | DC 2...10 V |
| Direction Of Motion Motor | selectable with switch 0/1 |
| Manual Override | External push button |
| Angle of Rotation | 95 |
| Running Time (Motor) | 95 s / 90° |
| Protection category | IP54 |
| Degree Of Protection NEMA | NEMA 2 |
| Enclosure Type | UL Enclosure Type 2 |
| Ambient Tempreture | -22...122°F [-30...50°C] |
Datasheets
 | Belimo LMX120-SR Technical Data sheet |
| Belimo LMB Series Installation Instructions |
| Belimo Mounting Methods Guide |
| Belimo Master Format |
- Actuator Type:
- Non Fail-Safe
- Torque:
- 35 in-lb
- Voltage:
- 120VAC
- Control Signal:
- 2-10VDC
- Auxillary Switch:
- None
- NEMA 4X Enclosure:
- No
