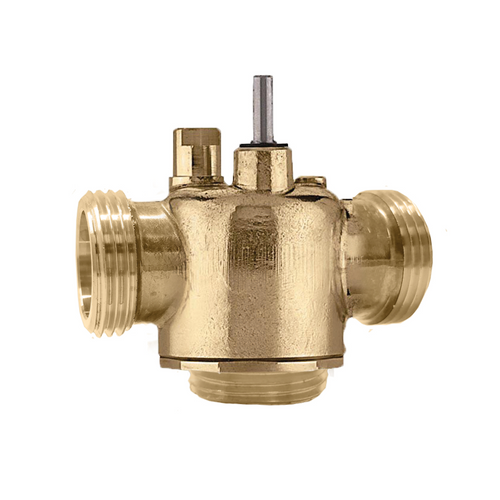

Caleffi Z200687 : 2-Way Valve, 1" G Thread Male Union, 7.5 Cv, 20 psi ΔP (Valve Only)
The Caleffi Z200687 is a Z2 2-way straight valve body designed for motorized zone valves featuring 1" G-thread male union connections. It provides a high flow capacity with a 7.5 Cv rating and is built for efficient, low-pressure-drop performance in hydronic systems. The valve’s brass construction, stainless steel stem, and EPDM rubber seals ensure durability and long-term reliability in heating and cooling applications.
The Z200687 is compatible with Caleffi Z1 actuators and designed for larger hydronic zones requiring strong flow control. Fittings for the male union connection can be selected separately from Section 8 Table in Caleffi’s catalog.
Key Features
- 2-way on/off, two-position valve body
- Straight-through flow design for efficient hydronic performance
- 1" G-thread male union connections
- High flow capacity with 7.5 Cv rating
- Stainless steel stem with EPDM rubber seals and paddle
- Compatible with Caleffi Z1 actuators
- Brass body construction for corrosion resistance and longevity
- Select compatible fittings from Section 8 Table
Technical Specifications
- Valve Type: 2-Way Straight (Male Union)
- Connection Type: 1" G Thread Male Union
- Maximum Operating Pressure: 300 psi
- Maximum ΔP: 20 psi
- Cv Rating: 7.5 gpm
- Medium Temperature Range: 32–240 °F
- Body Material: Brass
Datasheets
 |
|
|
Caleffi Z-One Motorized Zone Valve Installation and Commissioning Manual |
|
- Valve Pattern:
- 2-Way
- Valve Size:
- 1 Inch
- Connection Type:
- G Thread Male Union
- CV Rating:
- 7.5
- GPM:
- 15.0 @ 4 psi
- Actuator Type:
- Valve Only
