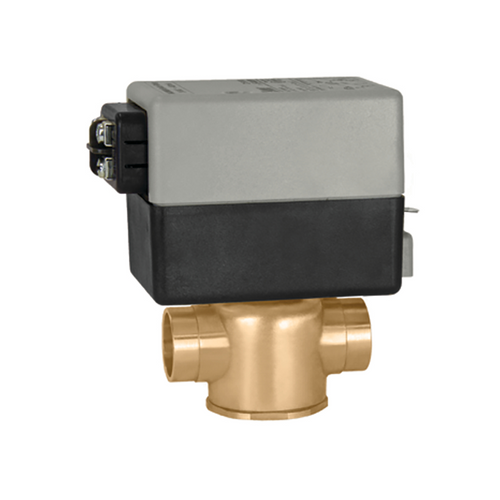

Caleffi Z40F : 2-Way Valve, Inverted Flare, 3.5 Cv, 30 psi ΔP, (2) NA10006 Adapters, Normally Closed Spring Return Valve Actuator, 24V AC, On/Off Control Signal, (1) SPST 0.4A Auxiliary Switch, 18" Wires
The Caleffi Z40F is a complete 2-way motorized zone valve assembly featuring an inverted flare valve body and a Z111000 normally closed spring-return actuator. It includes two NA10006 adapter fittings for convenient installation and compatibility with existing system connections. The assembly provides reliable on/off control for hydronic heating and cooling systems, combining precision flow control with dependable actuation.
The Z40F is UL873, cULus Listed, and CE certified, meeting UL 1995 section 18 requirements for air plenums and ducts. The spring-return actuator closes the valve automatically when power is removed and includes a built-in SPST auxiliary microswitch for interlock or feedback applications. Constructed from durable brass with EPDM seals and a stainless steel stem, this valve ensures reliable operation in hydronic environments.
Key Features
- 2-way motorized zone valve with normally closed actuator
- Inverted flare connection with (2) NA10006 adapters included
- Spring-return actuator closes valve when power is removed
- Integrated SPST auxiliary microswitch (0.4A @ 24V AC)
- Stainless steel stem and EPDM seals for reliable performance
- UL, cULus, and CE certified for air plenum and duct use
Technical Specifications
- Valve Type: 2-Way Straight
- Connection Type: Inverted Flare with (2) NA10006 Adapters
- Maximum Operating Pressure: 300 psi
- Maximum ΔP: 30 psi
- Cv Rating: 3.5 gpm
- Medium Temperature Range: 32–240 °F
- Electric Supply: 24V AC
- Power Consumption: 7 VA (at full capacity)
- Auxiliary Switch Rating: 0.4A @ 24V AC
- Maximum Glycol Concentration: 50%
- Medium: Water, glycol solutions, vapor (max 15 psi)
Datasheets
 |
|
|
Caleffi Z-One Motorized Zone Valve Installation and Commissioning Manual |
|
|
|
- Valve Pattern:
- 2-Way
- Valve Size:
- 3/4 Inch
- Connection Type:
- Inverted Flare
- CV Rating:
- 3.5
- GPM:
- 7.0 @ 4 psi
- Actuator Type:
- Non Fail-Safe
- Voltage:
- 24VAC
- Control Signal:
- On/Off
- Auxillary Switch:
- Yes
- NEMA 4X Enclosure:
- No
